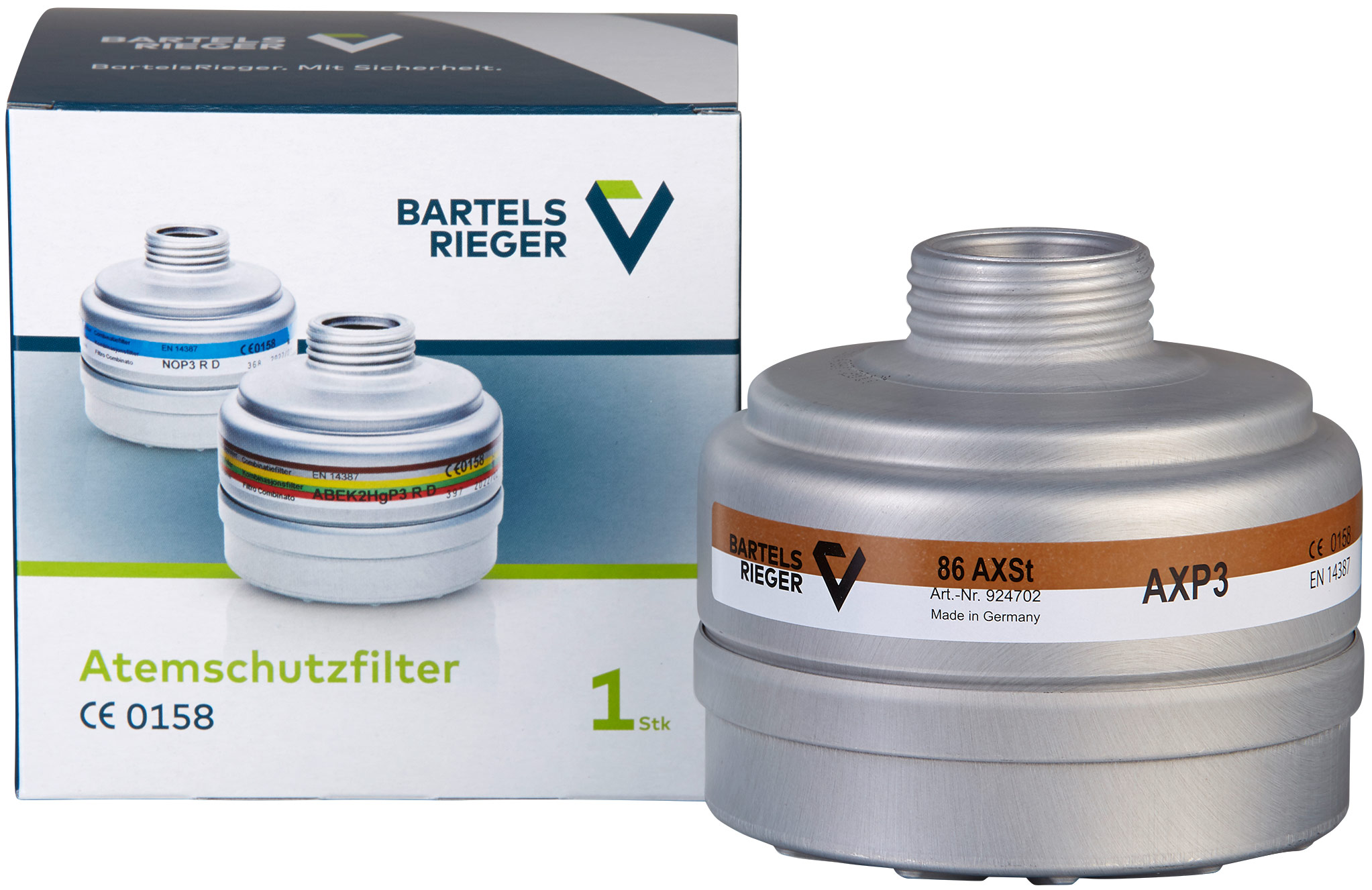

Combination filter 86 AXSt (Class AX-P3 R D)
The 86 AXSt combination filter is designed for use in areas that are contaminated by vapours and dusts of solvents with a low boiling point. The design guarantees the filtration of organic gases and vapours (boiling point > 65°C) and a particle filtration efficiency > 99.95%.
It is a screw filter according to EN 14387-AX-P3 RD, with a standard thread connection according to EN 148-1, for the protection against organic gases and vapours (organic compounds) with a boiling point < 65°C and at the same time against particles of toxic substances. All applications can be found in the main sites of operation.
Individually shrink-wrapped in PE bags and packed in a carton. Weight: approx. 290g.
| Application focus: | Painting, solvent vapors |
|---|---|
| EN standard: | DIN EN 133, DIN EN 148-1, DIN EN 14387:2008 |

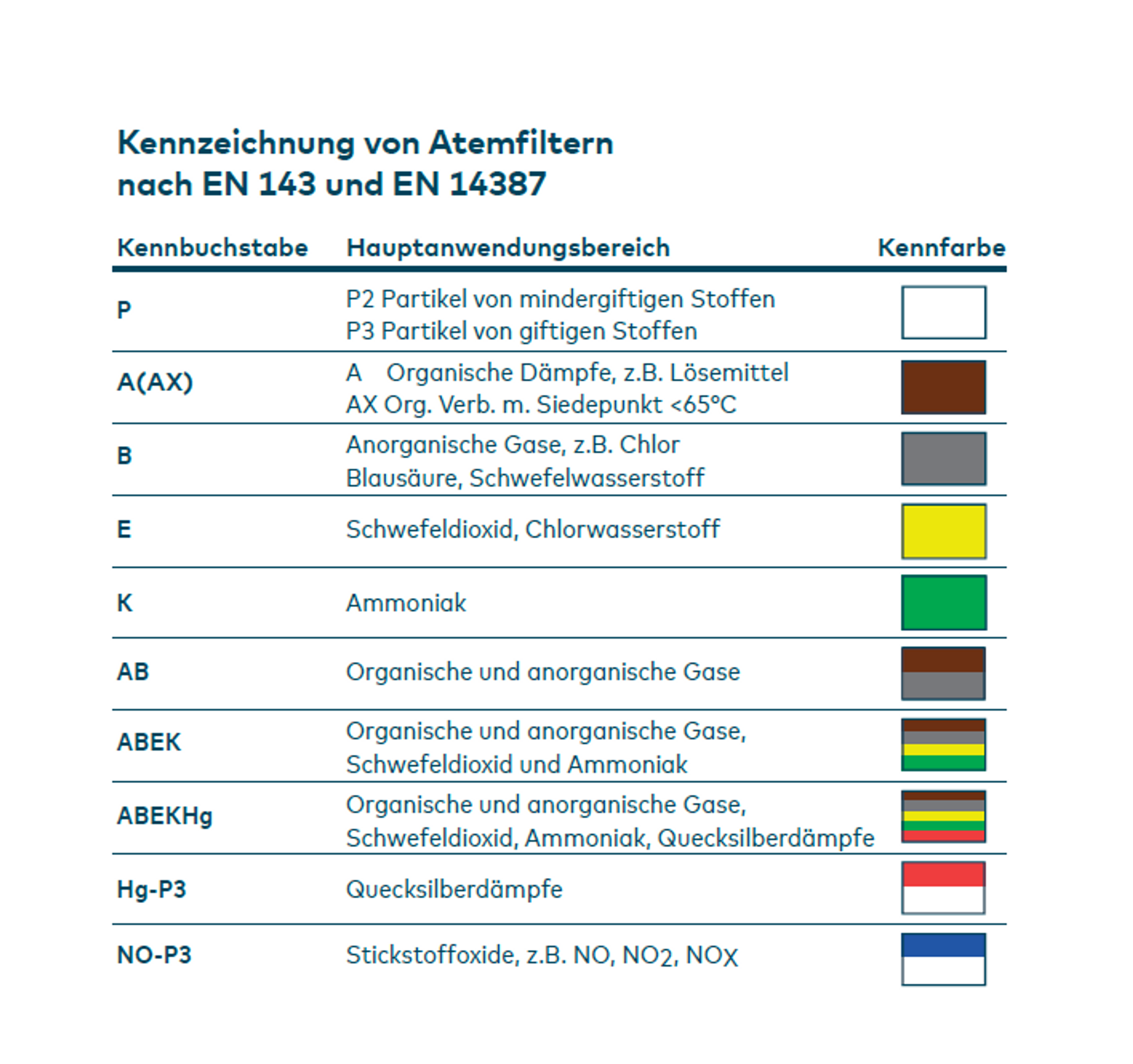

| Filter section: | AX – Vapors of organic compounds with boiling point ≤ 65 ° C (low boilers) | P – Particles |
| Filter type: | Combination filter |
| Material: | Aluminium |
| Product category: | Respiratory filter |
| Product series: | Screw filter |
| Version: | Combination filter |
Login
| File | Category | Size | Filetype | Prio |
|---|---|---|---|---|
| Brochure Respiratory filters | Product informations | 1.62 MB | ||
| 924702-Datasheet-Breathing-Filter_86AXSt | Datasheets | 192.81 KB | ||
| 07_EU-type-examination_Filter_80 | EU type-examination certificates | 1.14 MB | ||
| 07_EU-Declaration-of-conformity_Combination-filter_80_81_84_85_86 | EU declarations of conformity | 514.28 KB |
