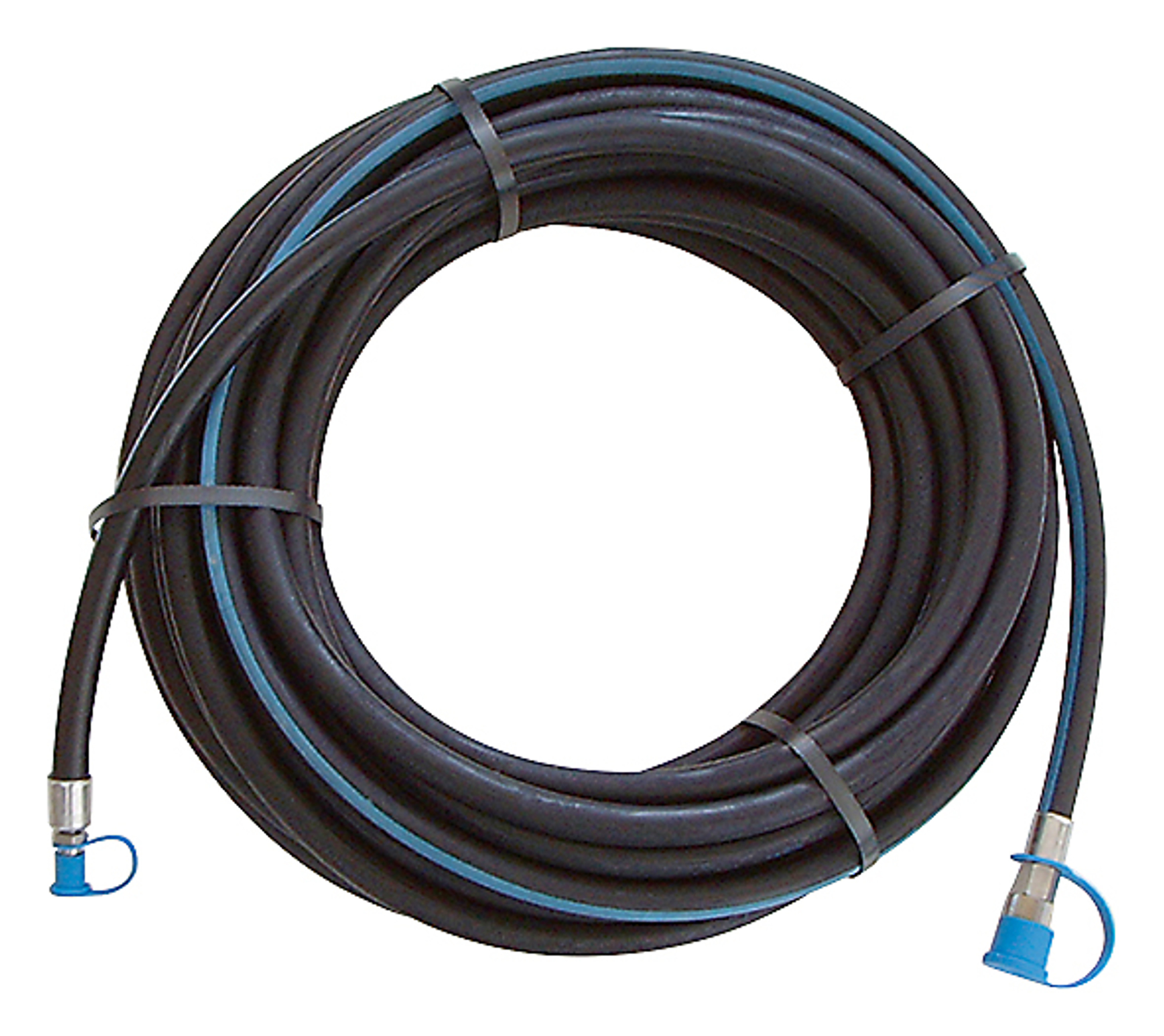

Compressed air supply hose DZS 9 (20 m)
EAN:
40 43567 41117 5
Manufacturer product ID:
941117
Product information "Compressed air supply hose DZS 9 (20 m)"
BartelsRieger compressed air supply hoses have specially assembled hose lengths with integrated fittings that meet the requirements of EN 14593-1 / EN 14594.
The hoses are available in various lengths. If required, several hoses can be combined to achieve a longer range.
The breathing air coupling is the link between the facepiece and the compressed air supply hose.
- Antistatic and flame resistant
- Black outer cover made of EPDM and longitudinal blue stripe
- Inner diameter of 9,5mm
- Including breathing air coupling AK2 and plug nipple AK2
- Available in working lengths from 5 to 50 metres
100 % certified
according to EN 14593-1/EN 14594 – respiratory protective devices
100 % tensile strength bindings
kink-resistant, heat- and flame-resistant and electrostatically dissipative
100 % combinability
of the hoses in different lengths
Properties
Data according to manufacturer. Errors and changes reserved.
