Combination BR A2B2E2K2P3 (ClassA2B2E2K2-P3)
Product number:
202424
Manufacturer product ID:
202424
Product information "Combination BR A2B2E2K2P3 (ClassA2B2E2K2-P3)"

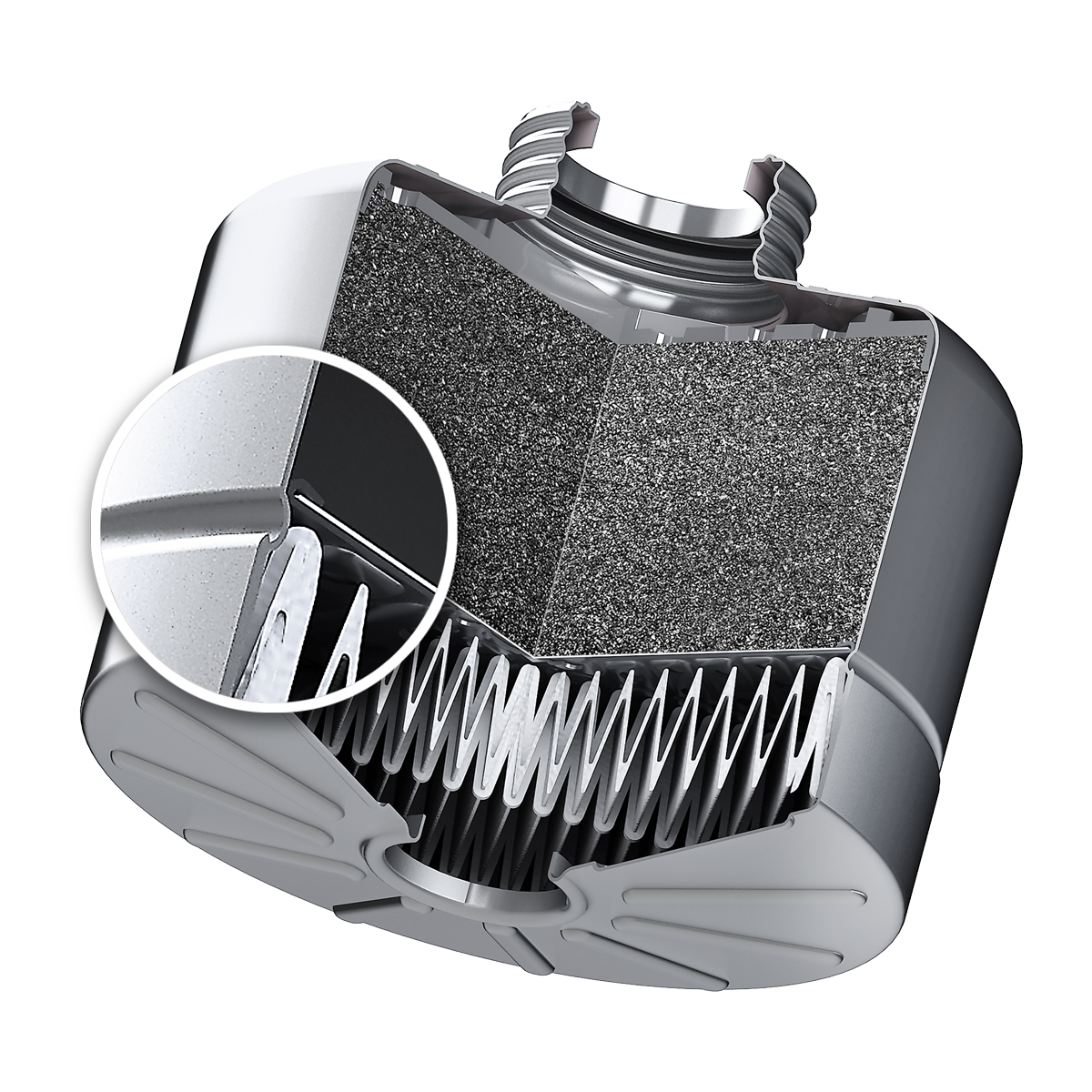

Screw filter acc. DIN EN 14387-ABEK2-P3 with standard thread connector acc. DIN EN 148-1, for protection against organic and inorganic gases and vapours, hydrogen chloride, sulphur dioxide, ammonia and particles of harmful and toxic substances.
In ATEX areas, these respiratory protection filters can be used in potentially explosive atmospheres of zones 1, 21, 2 and 22 if the following requirements are met:
- The respirator filters must be earthed via a dissipative mask and via the wearer's earthing with a leakage resistance <108 Ω.
- The respiratory filters must not be used in areas where high charge generation processes are expected.
- The respiratory filters must only be worn on the face mask only and not on the belt in the presence of an explosive atmosphere.
- The permissible ambient temperature must not exceed 70 °C, based on a temperature increase of 10 K on the parts in contact with a potentially explosive atmosphere, both in normal operation and in the event of a fault (zone 1 or 21) or during normal operation (zone 2 or 22) due to the activated carbon filter.
Individually shrink-wrapped in PE bags and packed in a carton.
Weight: approx. 395 g
Properties
| EN standard: | DIN EN 14387:2021 |
|---|---|
| Version: | Combination filter BR A2B2E2K2P3 |
Data according to manufacturer. Errors and changes reserved.
Login
No reviews found. Share your insights with others.
| File | Category | Size | Filetype | Prio |
|---|---|---|---|---|
| 202424-Datasheet-Breathing-Filter_BR ABE2K2P3 | Datasheets | 199.56 KB |
