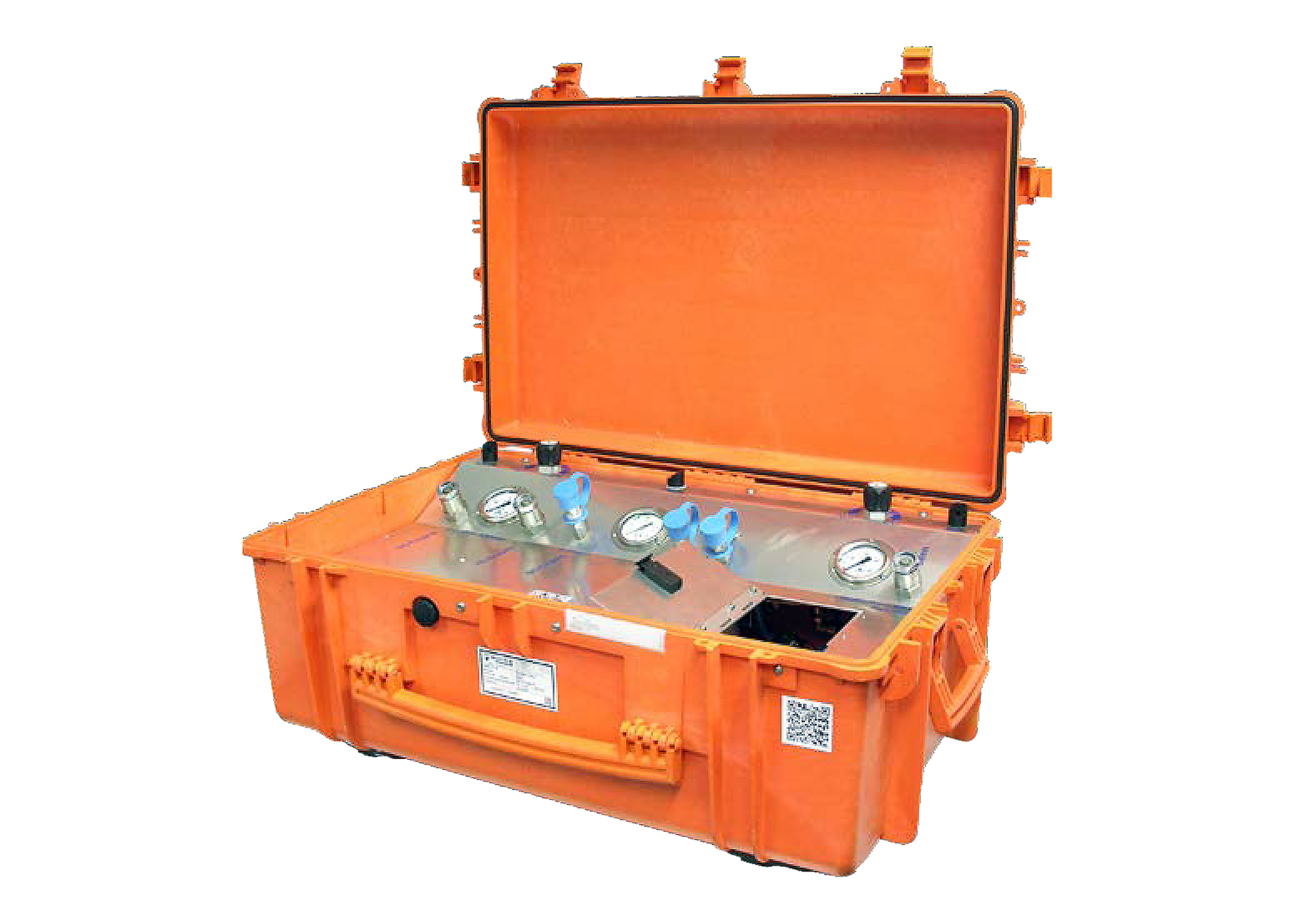

AirSafe MAX emergency air supply
Ready for shipping, delivery in 48h
Product information "AirSafe MAX emergency air supply"
In combination with a flexible high-pressure hose, the AirSafe MAX allows bridging distances of up to 100 m between the operation site and the high-pressure supply source (e.g. breathing air cylinder battery).
In the event of a malfunction of the high-pressure supply, the automatic change-over valve activates the integrated emergency air supply without interruption. At the same time a warning signal sounds in the case from the demand valve of the compressed air line breathing apparatus, to prompt the user to retreat.
- Waterproof and dustproof case made of impact-resistant, acid-proof polymer
- 2-fold high-pressure input enables parallel connection of several systems or cylinder batteries
- Designed for the use with compressed air line breathing apparatus with demand valve
- Case including wheels and extendable handles
- 2 filling and feed connections: 300 bar, medium pressure feed connection: 6 bar

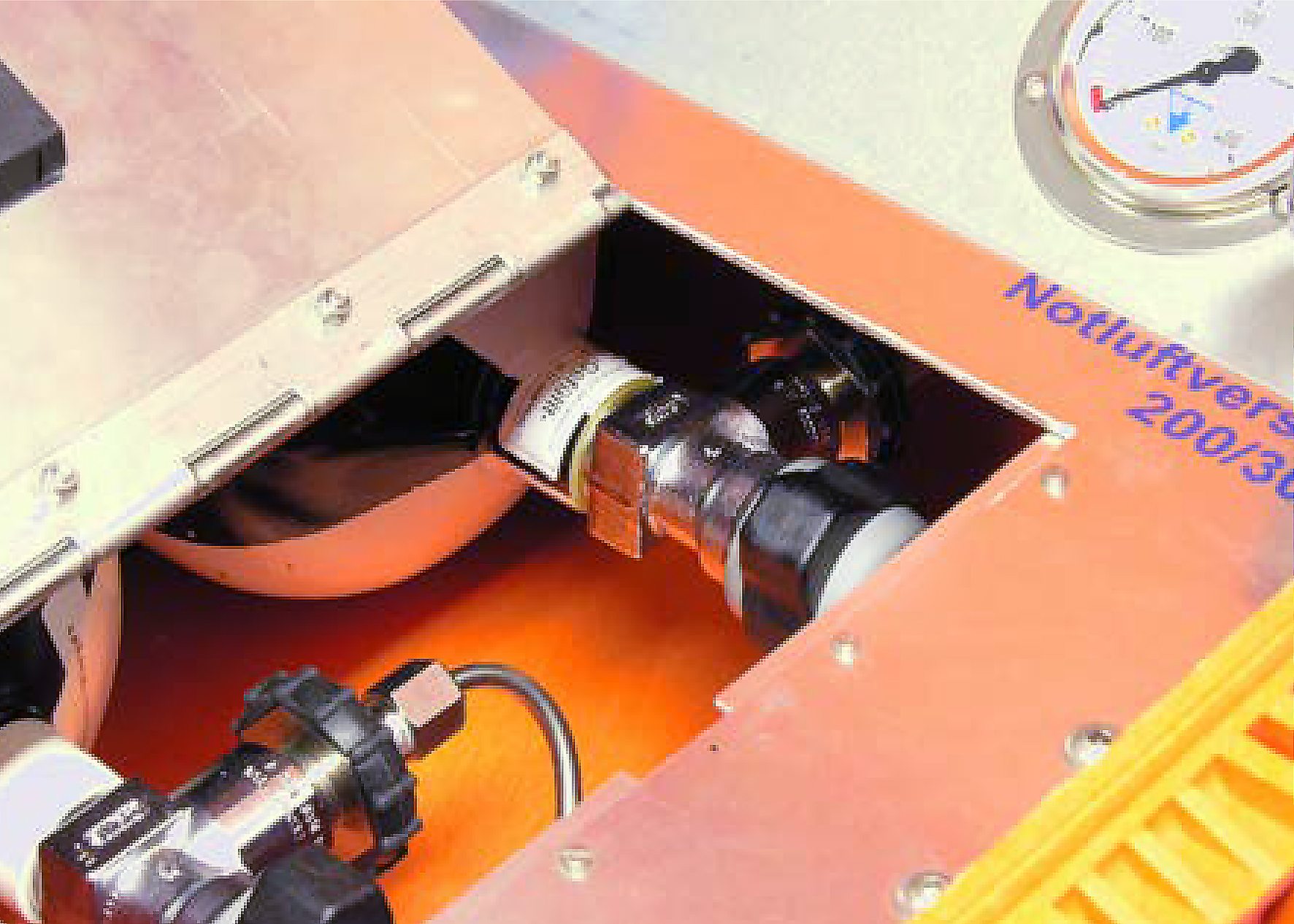

- Emergency air supply: Holds 2 breathing air cylinders of 6.8 l/300 bar each (approx. 3,800 litres of breathing air supply)
- Low respiration: 50 l/min = approx. 76 min, high respiration: 100 l/min = approx. 38 min
Equipment
- Pressure reducer
- Automatic change-over valve AUV
- 2 x filling and feed connections: 300 bar
- Medium pressure feed connection: 6 bar
- Medium pressure outputs: AK2 Coupling
- Medium pressure gauge: 0-16 bar
- High pressure manometer: 0-400 bar
- Acoustic warning device with active NLV
- Additional residual NLV warning device approx. 35 ±5 bar
Bridging up to 100 m
between the point of use and the high-pressure supply source
Lower G26 requirements
due to reduced weight for the user
100 % mobile
due to castors and extendable handles
100 % redundant
through an integrated emergency air supply
