Breathing air cylinder trolley Air2go MINI
Manufacturer product ID:
202003
Product information "Breathing air cylinder trolley Air2go MINI"

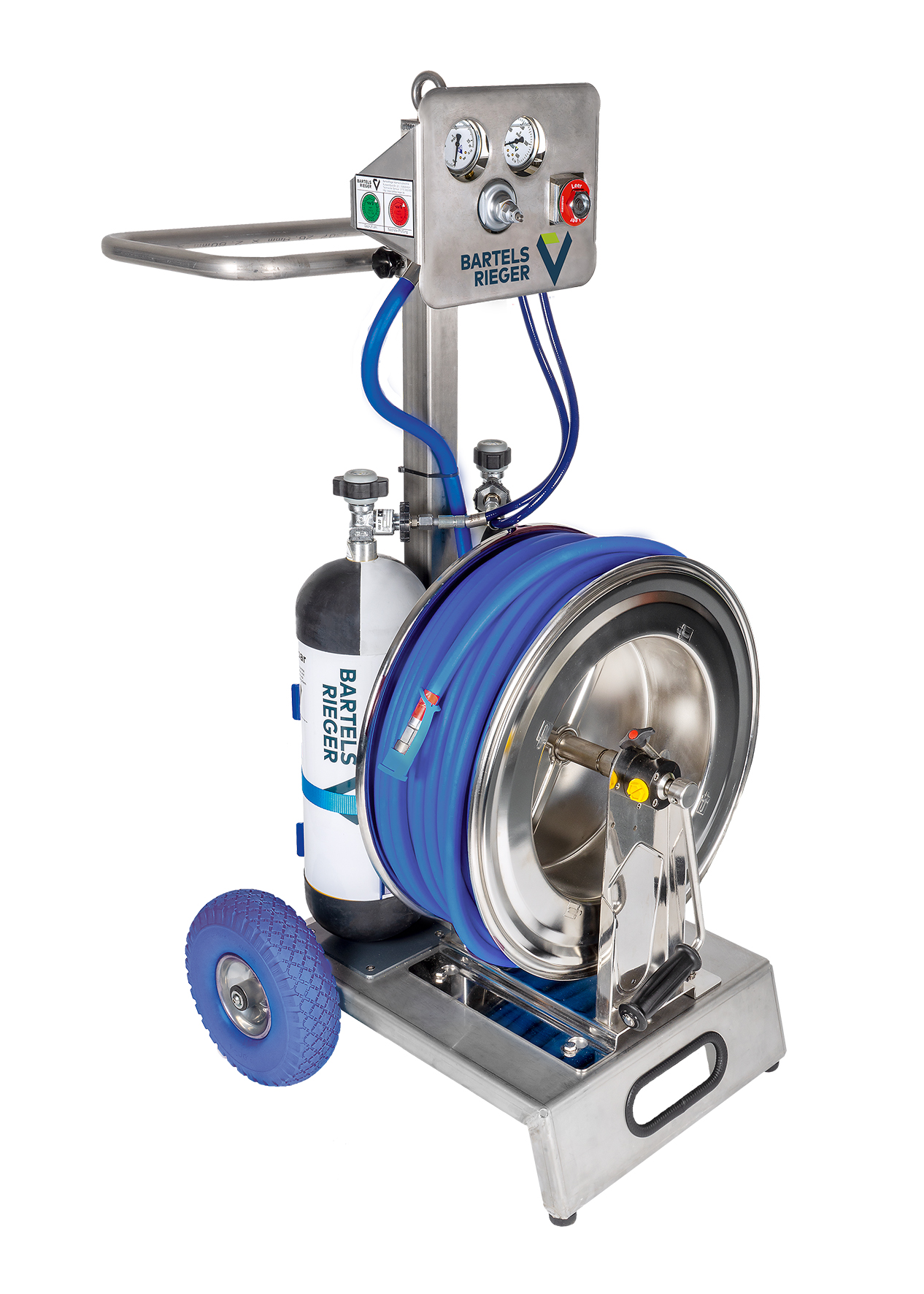

Breathing air cylinder trolley with a manual hose reel
- Designed to hold 2 breathing air cylinders of 6.8 l/300 bar or 9 l/300 bar
- Breathing air supply up to 5,100 litres
- Calculated air supply when using a compressed air hose unit with demand valve (6.8 litre cylinders):
Low respiration: 50 l/min = approx. 76 min; High respiration: 100 l/min = approx. 38 min - Calculated air supply when using a compressed air hose unit with demand valve (9 litre cylinders):
Low respiration: 50 l/min = approx. 102 min; High respiration: 100 l/min = approx. 51 min - Manual hose reel for compressed air supply hose DZS 9 (length up to 50 m)
- Supply of 2 compressed air line breathing apparatus
- Weight with cylinders approx. 50 kg
- Crane eye for loading the complete breathing air cylinder trolley

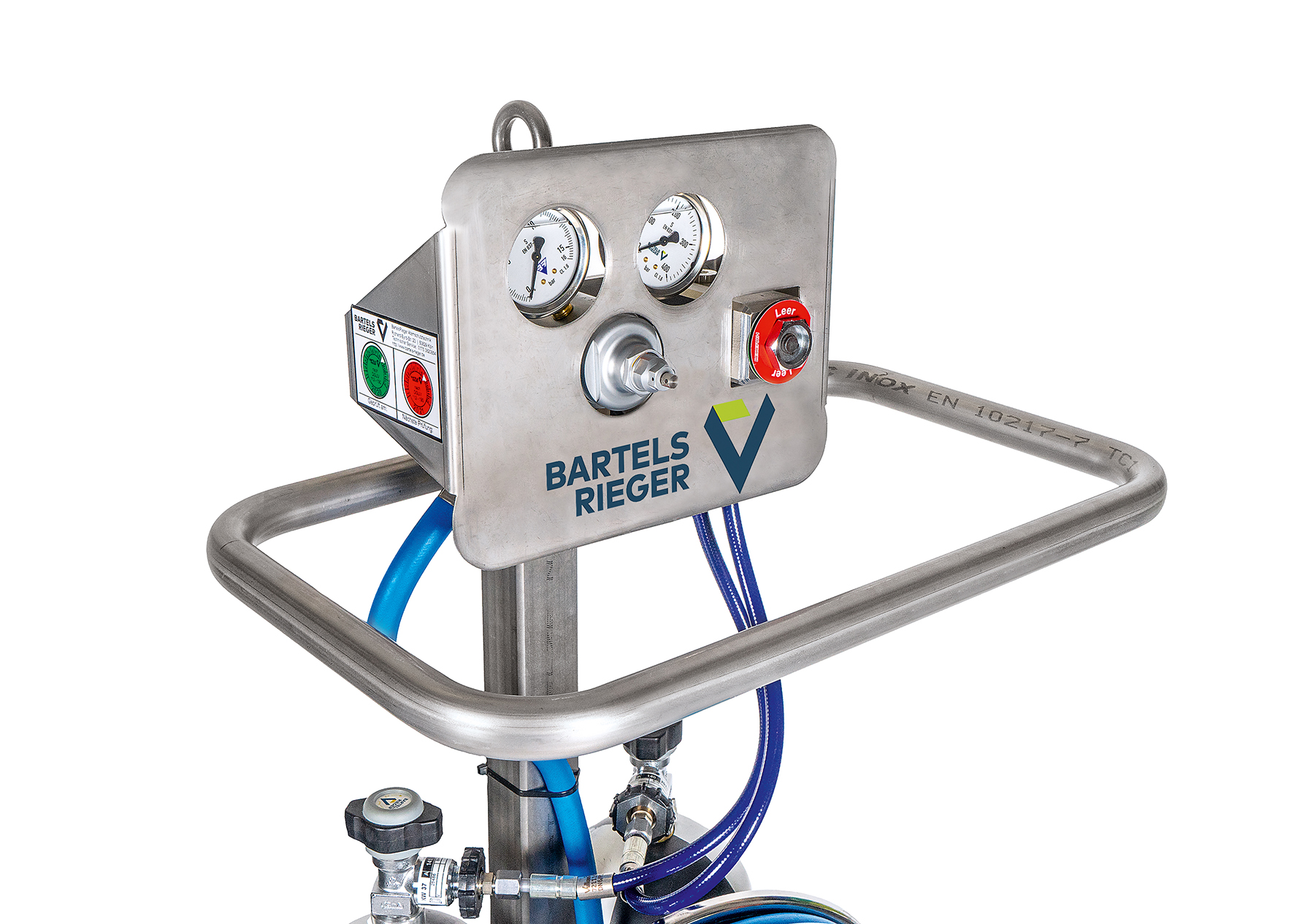

Pneumatic panels
- Pressure reducer DM 1900 reduces high pressure to working pressure of 5-6 bar
- Warning device in the panel sounds at residual pressure of approx. 35 ±5 bar
- Filling and feed connection: 300 bar
- Medium pressure gauge: 0-16 bar; high pressure gauge: 0-400 bar
- Flexible high-pressure connecting hoses for connection to the compressed gas cylinders
- Relief valve – can be used manually as a vent valve
100 % modular Designed to hold 2 pressurised breathing air cylinders of 6.8 litres or 9 litres each
100 % manoeuvrable 50 kg total weight
100 % robust High-quality stainless steel frame for maximum load capacity, quality & durability
Properties
Data according to manufacturer. Errors and changes reserved.
