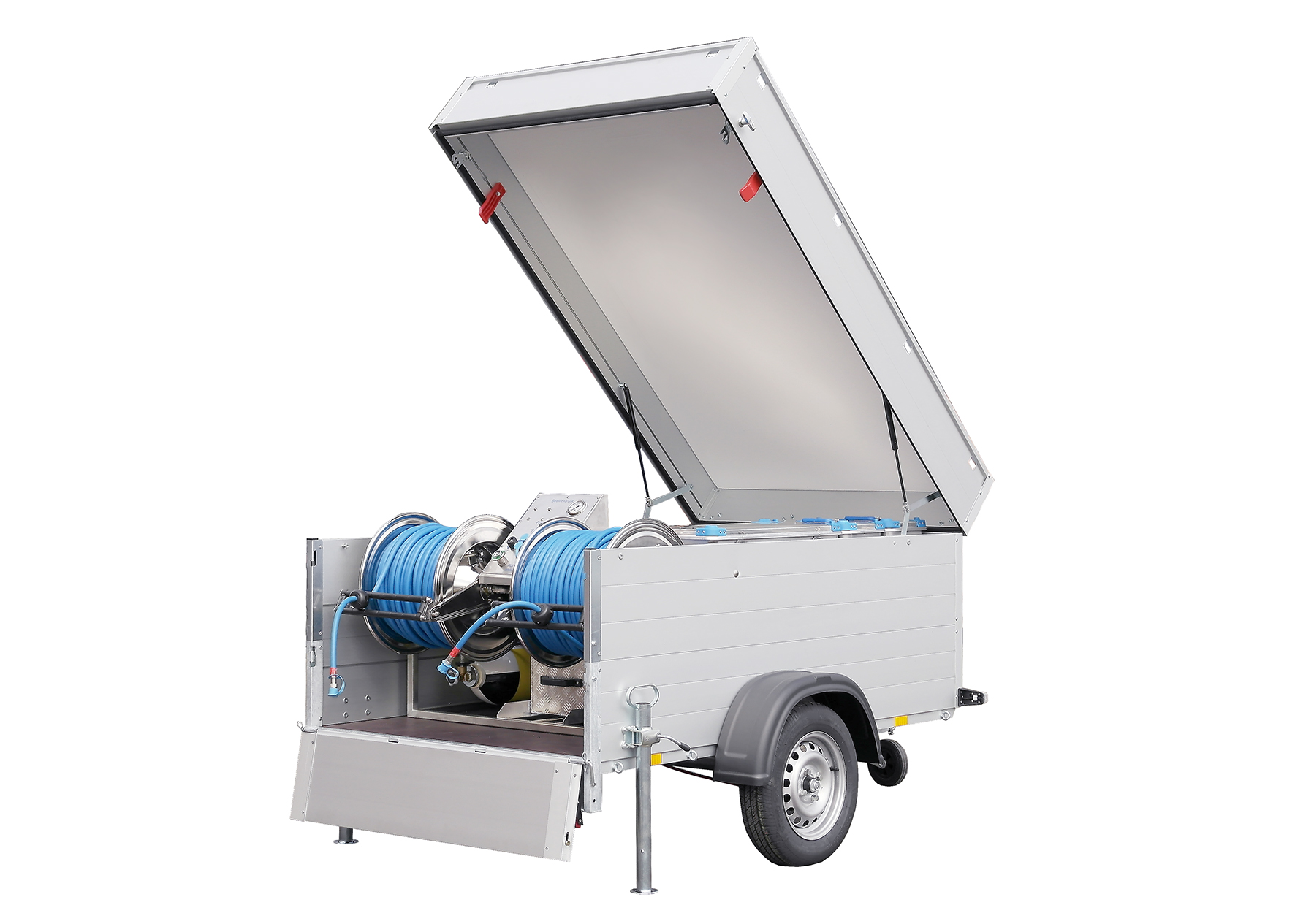

Breathing air trailer AirMax PRO
Manufacturer product ID:
200523
Product information "Breathing air trailer AirMax PRO"
With an overall height of 144 cm and space for up to two breathing air cylinders, two hose reels and accessories. The AirMax PROFESSIONAL also offers space for a complete, impact and shock-resistant pneumatic module, has a cover with gas pressure shock absorber and two parking supports.
Product details:
- Calculated air supply for a compressed air line breathing apparatus with demand valve:
Low respiration: 50 l/min = approx. 560 min; High respiration: 100 l/min = approx. 280 min - Stainless steel base frame
- Aluminium chassis (LxWxH: 3.14 x 1.68 x 1.09 m)

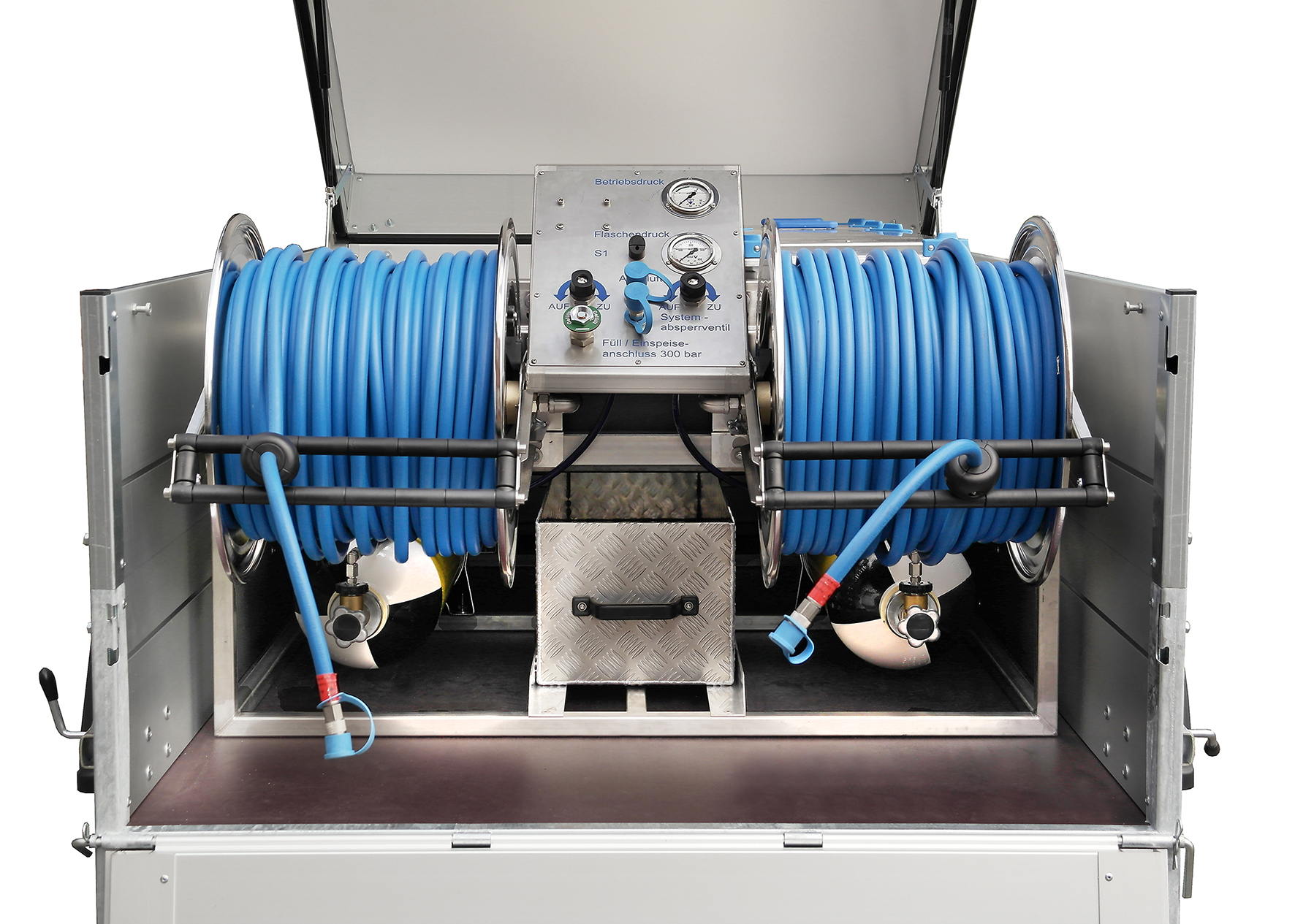

- Two stainless steel automatic hose reels incl. compressed air supply hose DZS 9 à 50 m

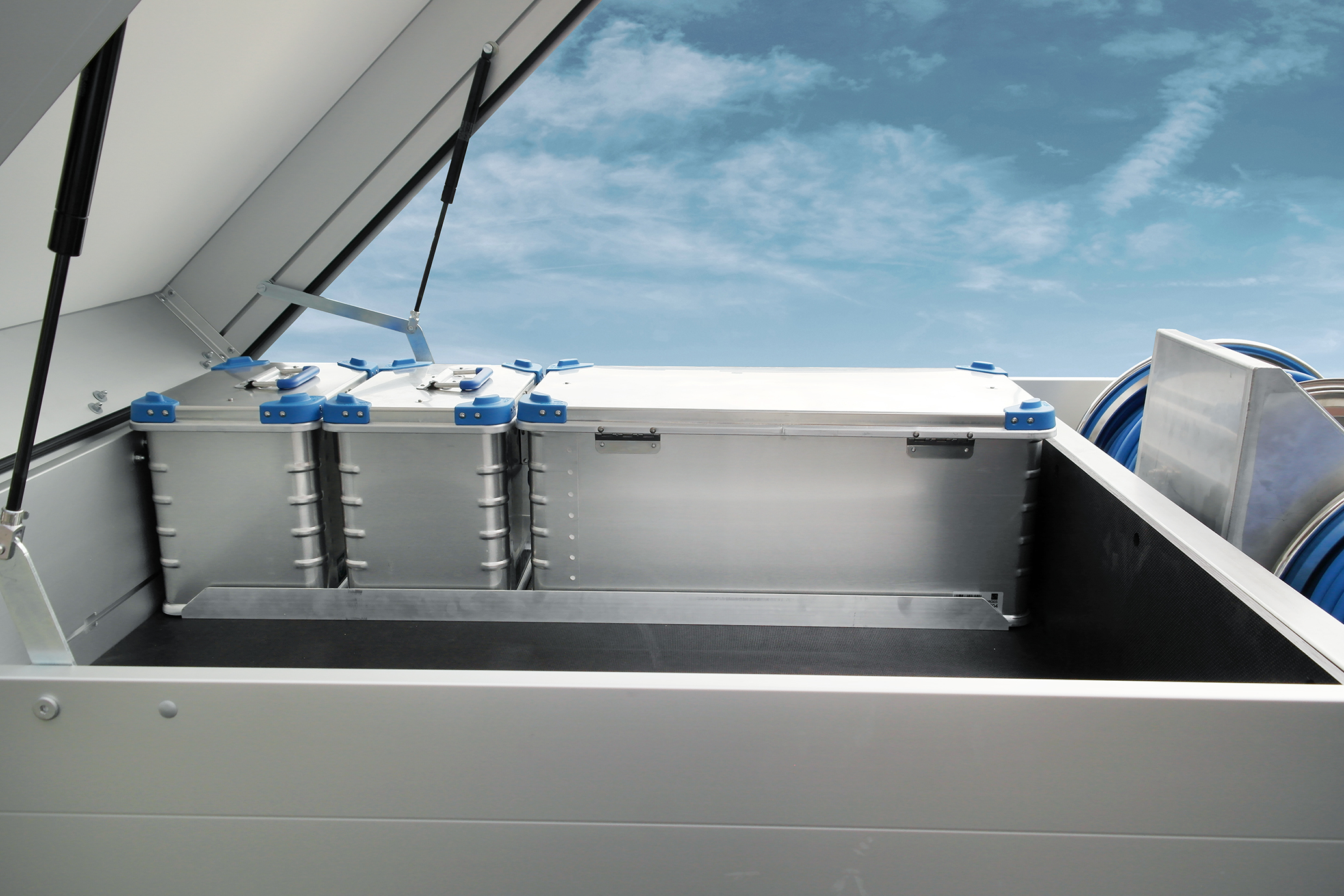

- Two standardised aluminium boxes for personal protective equipment
- Aluminium storage box for height rescue
- Breathing air supply: Accommodates up to two 50 l / 300 bar breathing air cylinders (approx. 28,000 litres of breathing air supply)
- Supply of four equipment carriers (two via hose reels, two via medium pressure outlets on the tableau)
- Permissible total weight <750 kg
- Road approval
- Overrun and parking brake; support wheel

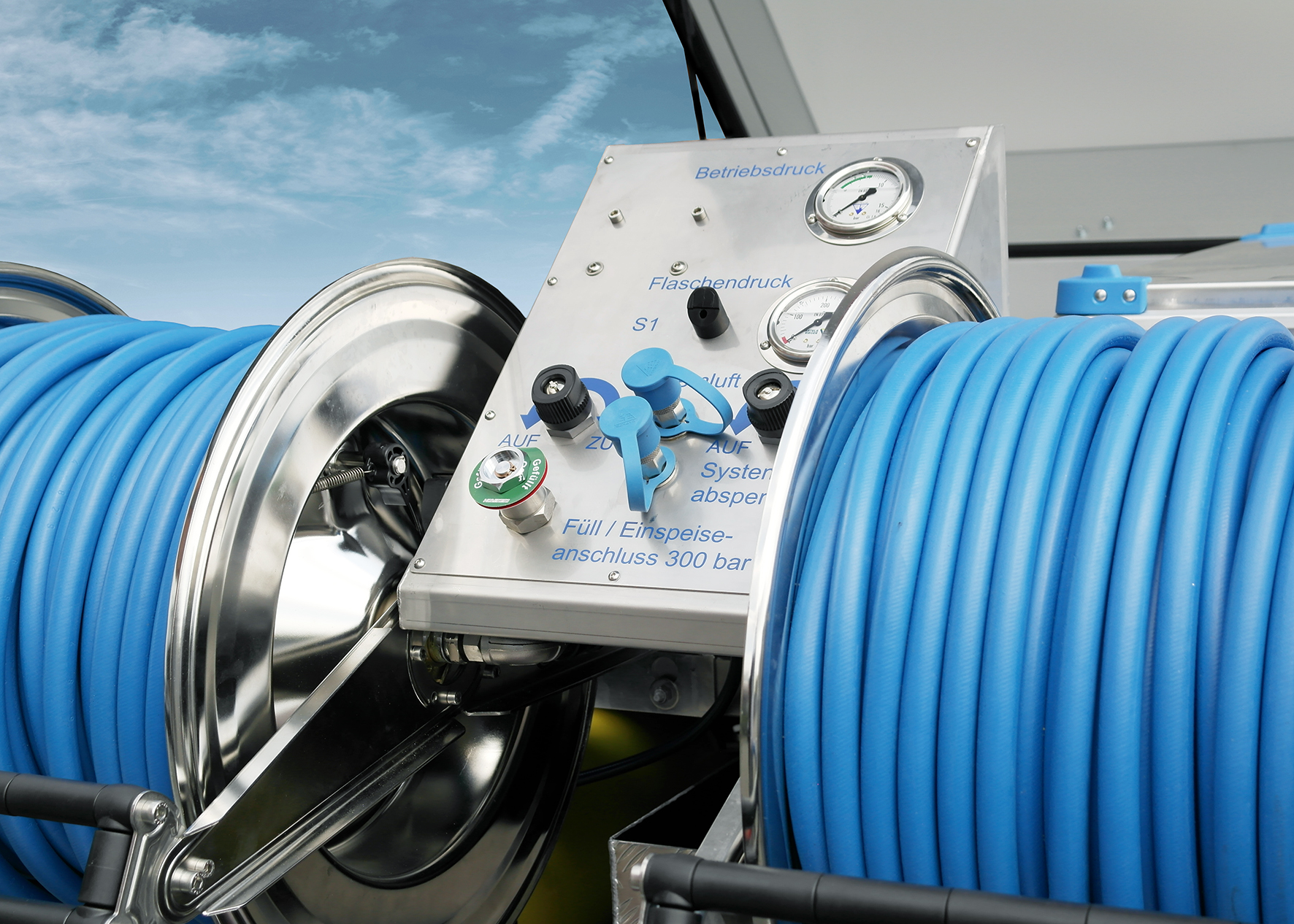

- Pressure reducer
- Filling and feed connection: 300 bar
- Medium pressure outputs: 2 AK2 extraction couplings
- Medium pressure gauge: 0-16 bar; high pressure gauge: 0-400 bar
- Residual pressure warning device: approx. 35 ± 5 bar
- Scope of delivery without breathing air cylinders
100 % system solution
for mobile breathing air supply
100 % mobile
Approved for use on public roads
100 % quality advantage
due to stainless steel base frame modules
Up to 4 equipment carriers
can be supplied simultaneously
Properties
Data according to manufacturer. Errors and changes reserved.
