Mobile breathing air conversion AirBox
Price is loading...
load Availability
Ready for shipping, delivery in 48h
Product number:
201512
Manufacturer product ID:
201512
Product information "Mobile breathing air conversion AirBox"

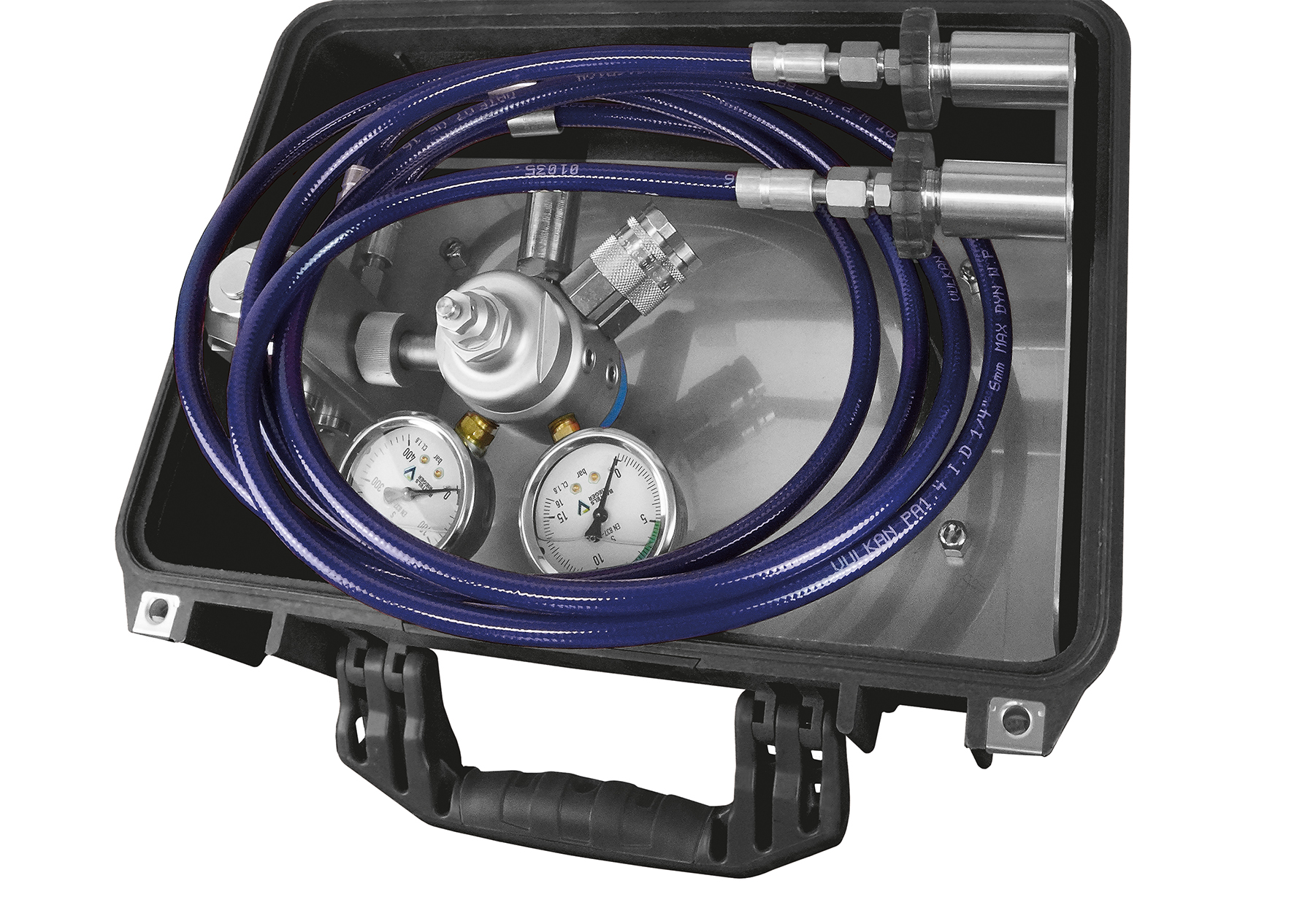

The Airbox is designed for harsh environments and is used to hold and protect the DM 1900.
This system allows safe connection to up to 2 high pressure sources (e.g. cylinder battery). The connection is made either by 1 or 2 flexible high pressure hoses (2 m), whose mechanical strength is designed for the expected operation. The Breathing air supply for up to 2 persons will be produced with compressed air supply hoses (length of 50 m; not included in scope of delivery).
- Waterproof and dustproof case made of impact-resistant, acid-proof polymer
- Residual pressure warning device
- Outlet pressure: 5.5 bar
- Weight: 10,5 kg
Pneumatics
- Pressure reducer DM 1900 reduces high pressure 300 bar to working pressure of 5-6 bar
- Warning device in the panel sounds at residual pressure of approx. 35 ±5 bar
- Filling and feed connection: 300 bar
- Medium pressure gauge: 0-16 bar; High pressure gauge: 0-400 bar
- Flexible high-pressure connecting hoses for connection to the compressed gas cylinders
- Relief valve – can be used manually as a vent valve
- Up to 2 users simultaneously
Delivery capacity up to 1,900 l/min for simultaneous supply of up to 2 users - 100% system protection
In a waterproof and dustproof case made of impact-resistant, acid-proof polymer - 100 % modular case solution
in combination with Air2go LIGHT - 100 % system safety
with warning signal, safety and venting valve, pressure gauge displays for high and medium pressure
