Pressure reducer DM 1900 MDW-4
Product number:
202370
Manufacturer product ID:
202370
Product information "Pressure reducer DM 1900 MDW-4"
Pressure reducer DM 1900 MDW-4 supplies up to four equipment carriers (demand valve) with breathing air - high pressure manometer (0-400 bar).
- Medium pressure manometer (0-16 bar)
- Medium pressure warning device
- Residual pressure warning sounds at a residual pressure of 40 to 30 bar (warning pressure 7.0 - 9.0 bar)
- Four breathing air couplings AK 2
- System bleed valve
- Cylinder connection G 5/8 according to EN 144-2
- Operating pressure 300 bar
- Flow rate 1900 l/min
The DM 1900-iMDW pressure reducer with intermittent warning device is particularly suitable for noisy working environments. In addition, less breathing air is consumed for the acoustic warning signal.

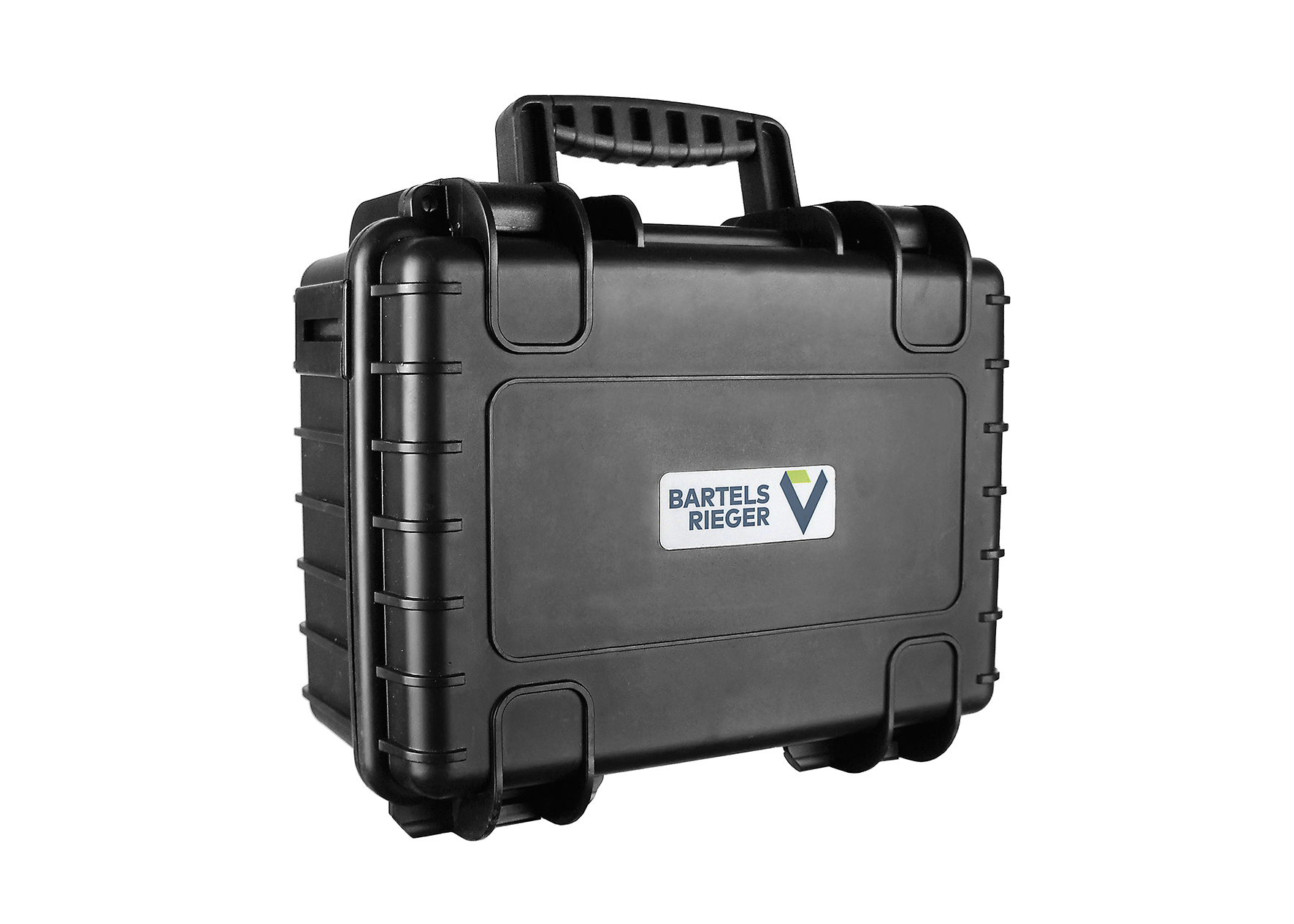

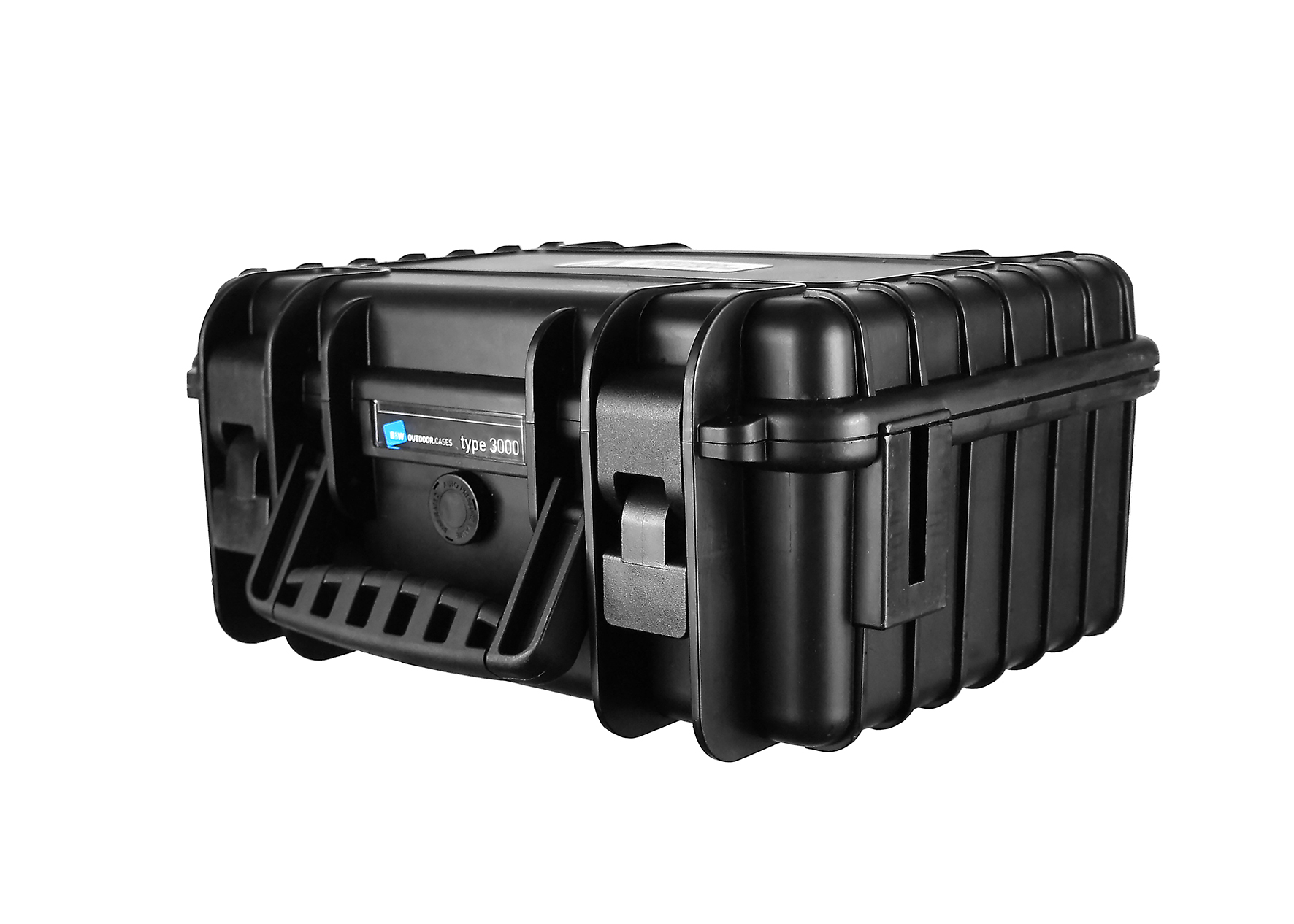

The unit is supplied in an impact resistant black polypropylene outdoor case, fitted with a high quality foam insert for safe storage and transport of the pressure reducer (dimensions of outdoor case interior): 329 x 233 x 152 mm, exterior: 364 x 295 x 169 mm).
Login
No reviews found. Share your insights with others.
| File | Category | Size | Filetype | Prio |
|---|---|---|---|---|
| Broschüre Atemschutz als Mietlösung | Product informations | 3.01 MB | ||
| Brochure Breathing air supply systems | Product informations | 17.10 MB | ||
| 202370-Datasheet-pressure reducer-DM1900-MDW4 | Datasheets | 325.74 KB |
