Pressure reducer DM 1900 iMDW-2
Ready for shipping, delivery in 48h
Product information "Pressure reducer DM 1900 iMDW-2"
The pressure reducer DM 1900 iMDW-2 supplies two equipment carriers (demand valve) with breathing air - high pressure manometer (0-400 bar).
- Medium pressure manometer (0-16 bar)
- Intermittent medium pressure warning device
- Two breathing air couplings AK 2 -system vent valve
- Cylinder connection G 5/8 according to EN 144-2
- Operating pressure 300 bar
- Flow rate 1900 l/min
In this version, the DM 1900 pressure reducer is equipped with a medium pressure warning device (MDW), which emits an acoustic warning signal above 90 db(A) at a residual cylinder pressure of 40-30 bar.

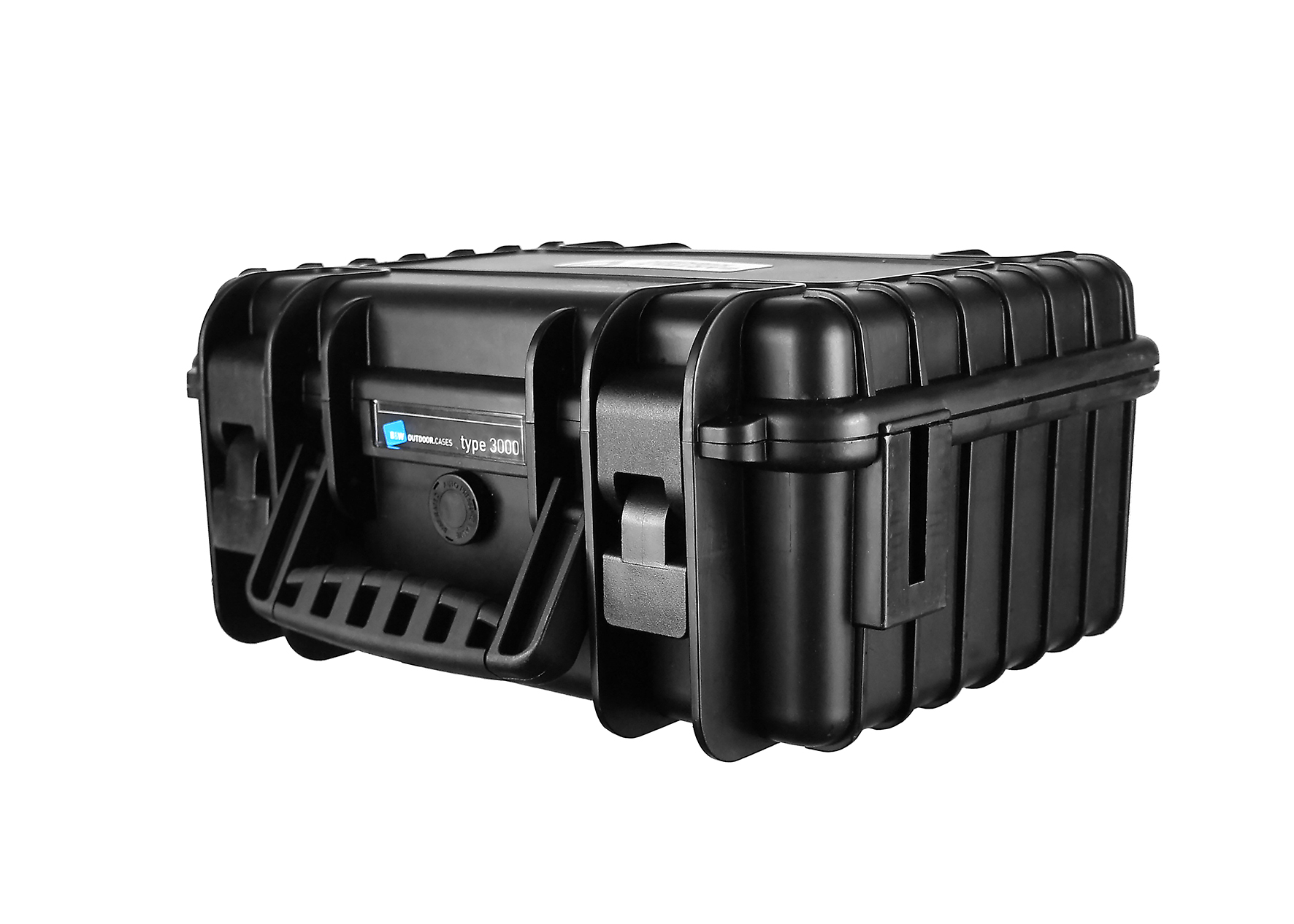

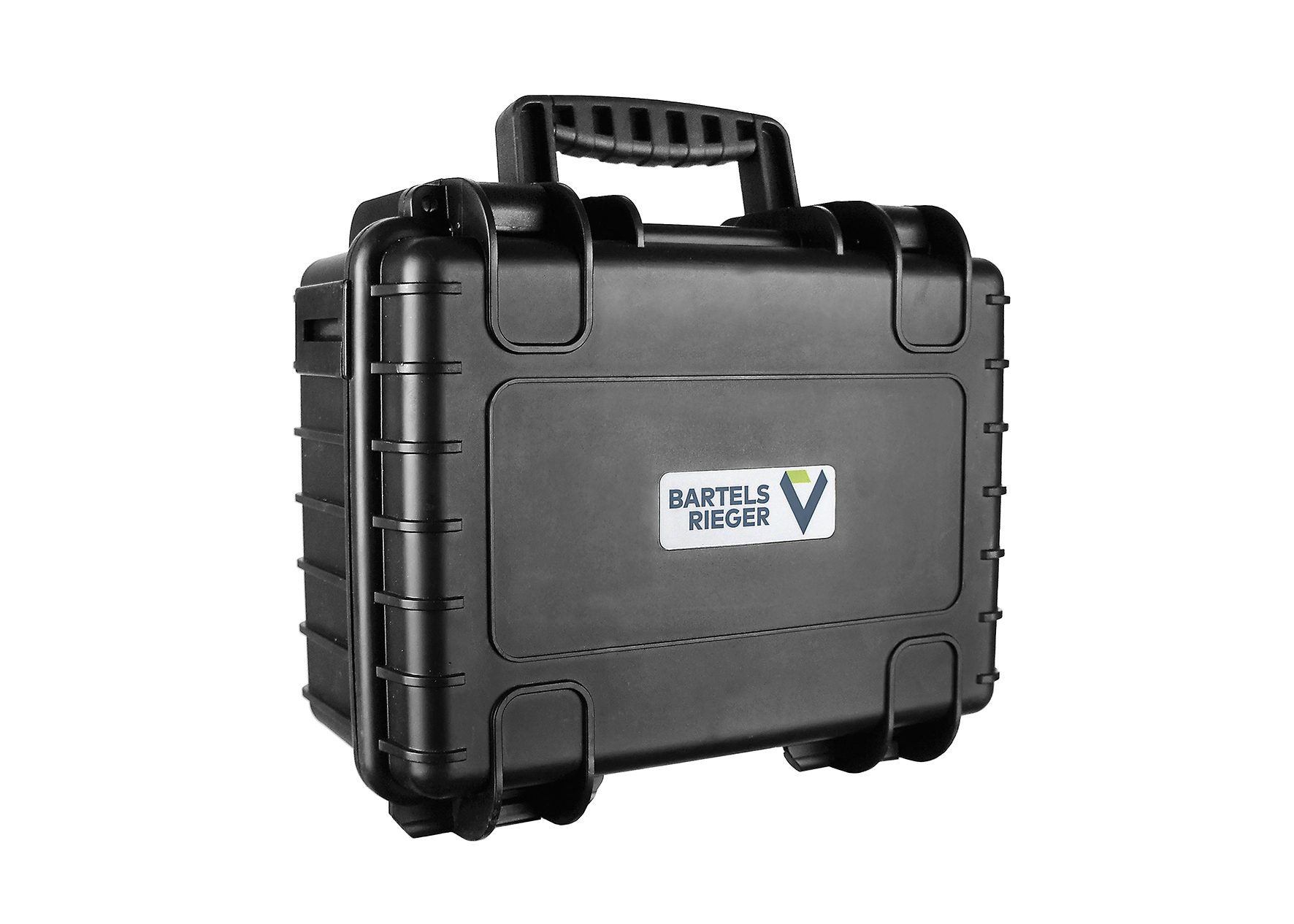

The unit is supplied in an impact resistant black polypropylene outdoor case, fitted with a high-quality foam insert for safe storage and transport of the pressure reducer (dimensions of outdoor case interior): 329 x 233 x 152 mm, exterior: 364 x 295 x 169 mm).
Login
| File | Category | Size | Filetype | Prio |
|---|---|---|---|---|
| Broschüre Atemschutz als Mietlösung | Product informations | 3.01 MB | ||
| Brochure Breathing air supply systems | Product informations | 17.10 MB | ||
| 200697-Datasheet-pressure reducer-DM1900-iMDW2 | Datasheets | 325.74 KB |
