Starter pack half face mask BariMask HF + 5 plug-in filters 39 ASt + filter housing 5570/70
Product information "Starter pack half face mask BariMask HF + 5 plug-in filters 39 ASt + filter housing 5570/70"
Respiratory protection starter pack: BariMask HF half face mask + 5 plug-in filters 39 ASt + filter housing
The starter pack from BartelsRieger - consisting of the BariMask HF half face mask, the combination filter 39 ASt (A1P2 R) and the robust 5570/70 filter housing - offers reliable respiratory protection for professional use. Optimally coordinated, it guarantees maximum protection against organic gases, vapors and particles.

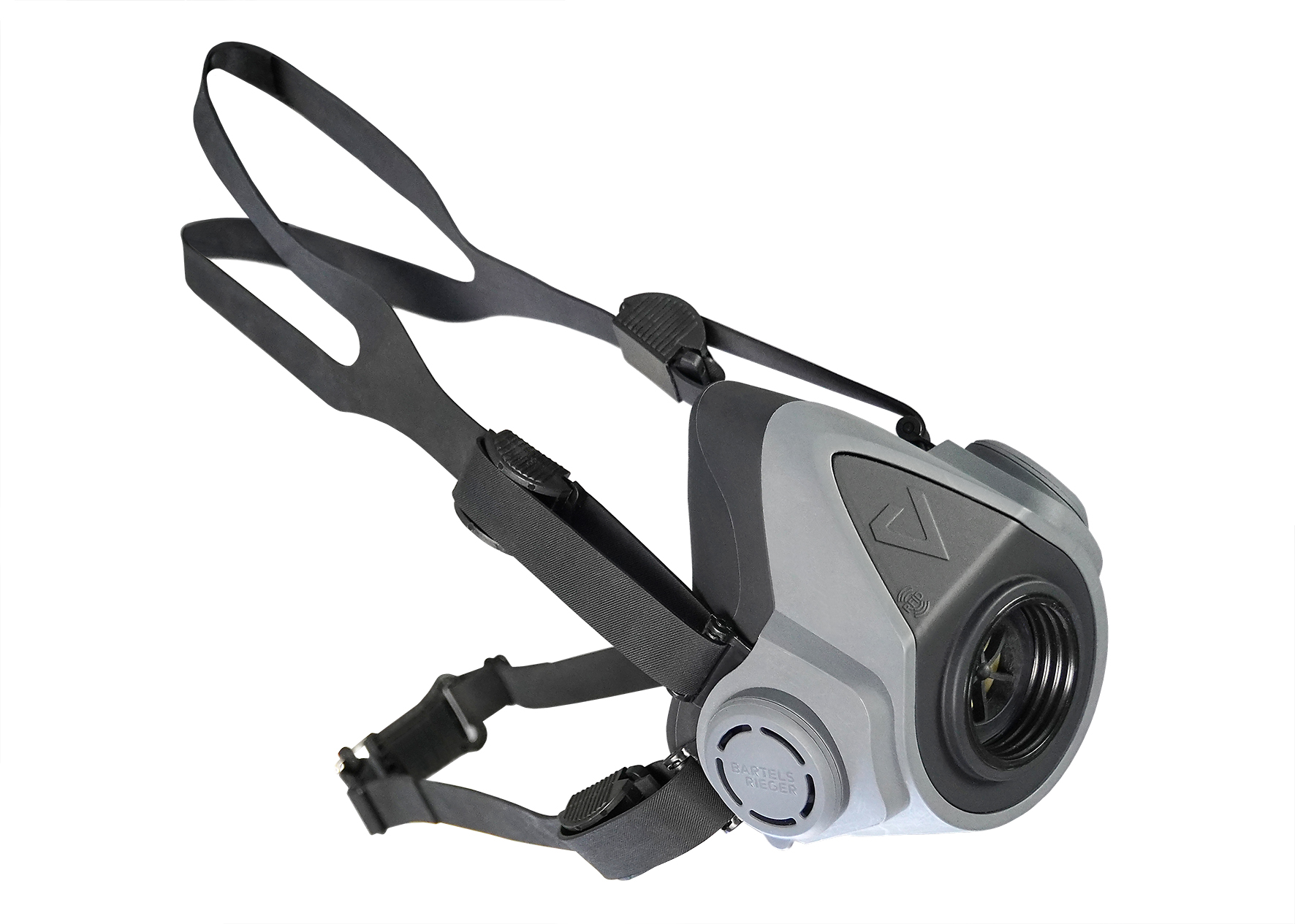

Product information half face mask BariMask HF by BartelsRieger
The half face mask BariMask HF Mask body made of NBR Covers mouth, nose and chin.
It has a round thread connection with an inhalation valve, two lateral exhalation valves and an attached roll-up strap with infinitely adjustable sliders. All screw-in filters and all plug-in filters with the reusable filter housing can be connected via the round thread connector in accordance with EN 148-1.
The hinged magnetic buckle on the neck strap ensures that the respirator is easy to put on and fits perfectly.
Product details
- Half mask BariMask HF according to EN 140:1998
- Round thread connection Rd40x1/7“ according to DIN EN 148-1
- Identification via built-in transponder
» Optimised sealing line leads to high fit factor
» One size fits all – New design with an ideal fit
» Lower storage costs and material stocks thanks to universal fit
» Innovative quick-lock binding for easy handling and high comfort

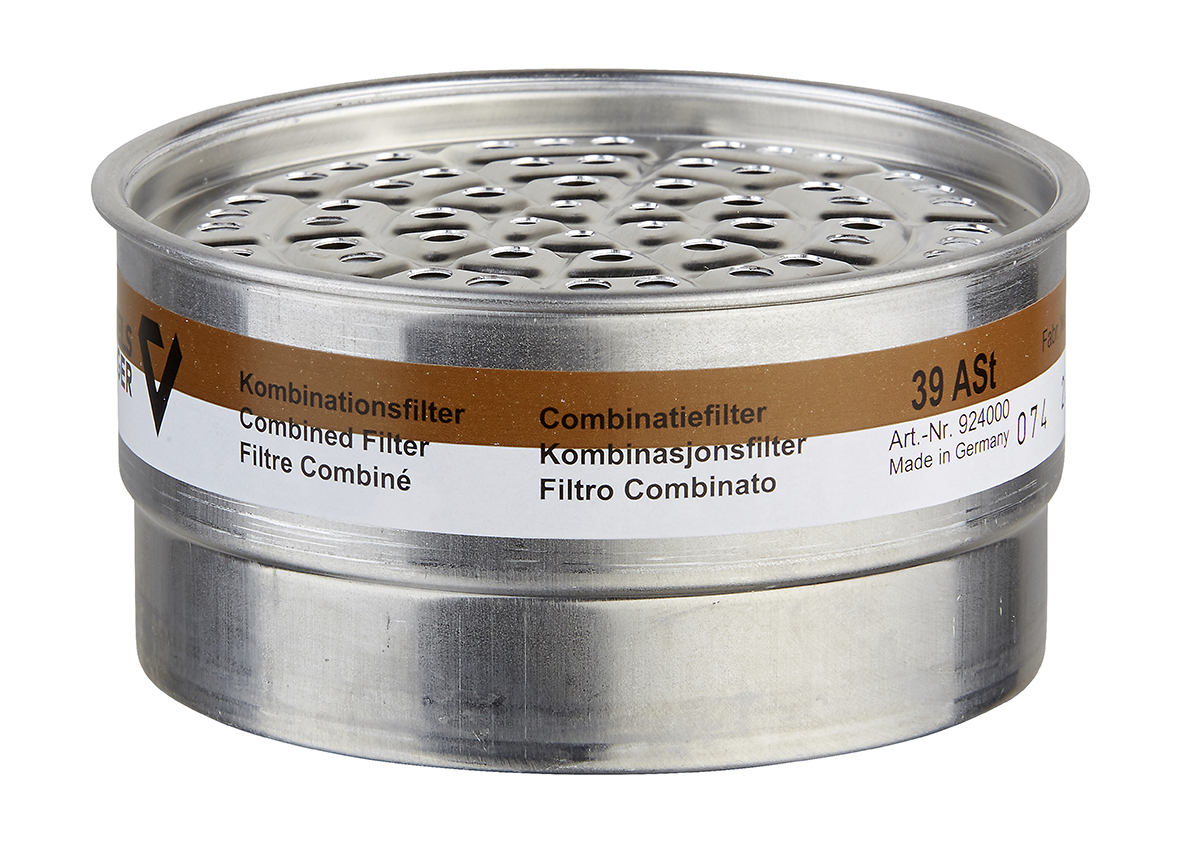

Product information combination filter 39 ASt (Class A1P2), 5 pcs
The 39 ASt combined filter is designed for use in areas contaminated by dusts and solvent vapours. The design guarantees the filtration of organic gases and vapours (boiling point > 65°C) and a particle filtration efficiency > 94.95%.
It is a plug-in filter according to EN 14387-A1P2 R D for protection against organic gases and vapours with a boiling point above 65°C and simultaneously occurring particles of low toxic substances.
Please refer to the main areas of use for all deployment options. Required accessories: Filter housing 5570/70 art. no. 929006.
Properties combination filter 39 ASt
Application focus: Spraying, solvents with boiling point > 65 ° C, aerosol, herbicides and pesticides (low-toxic), rock dust, glass wool, mineral fibers, wood dust, soot, steel dust, bacteria and viruses

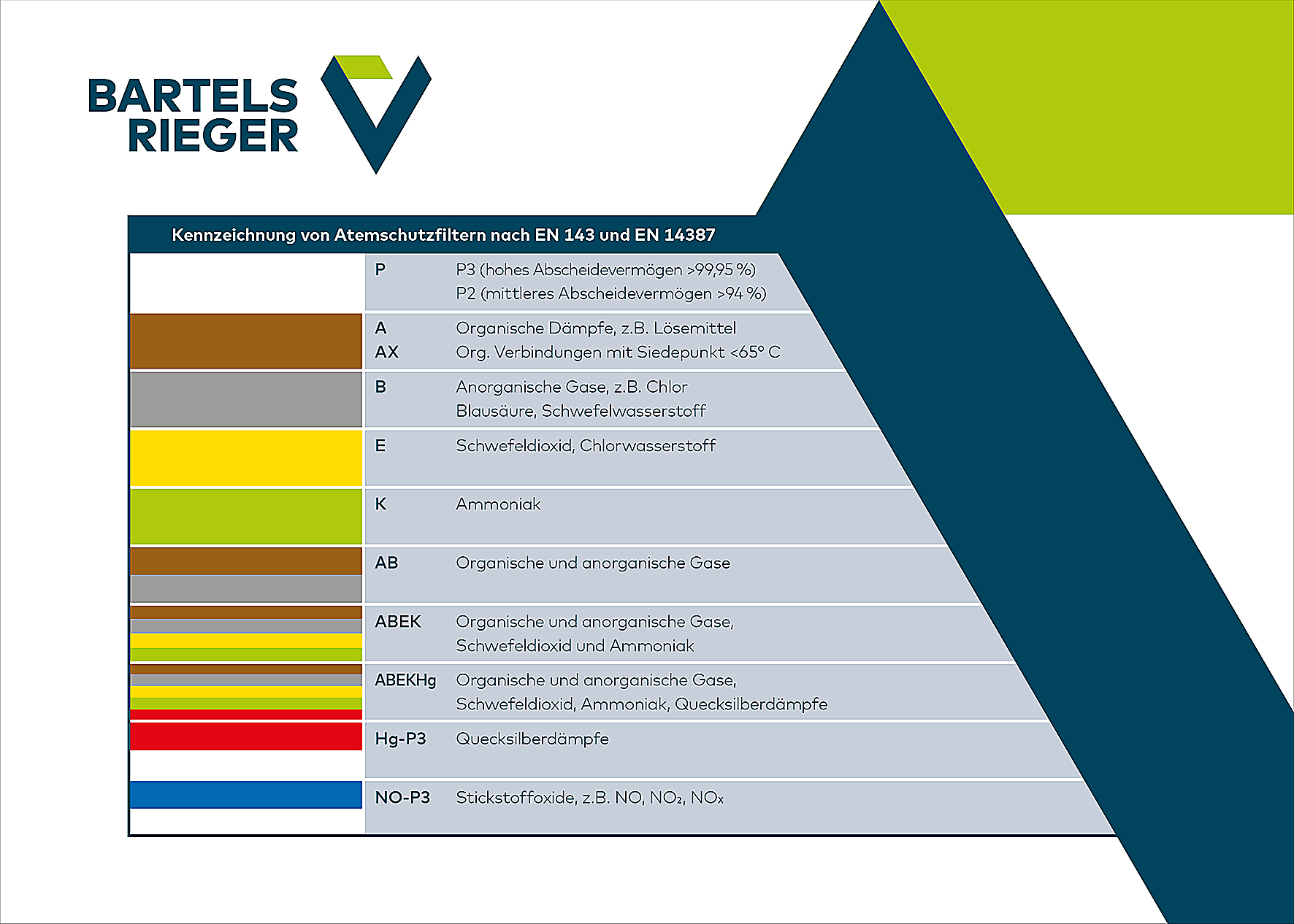

EN standard: DIN EN 133 DIN EN 14387:2008
Filter section: A – Vapors of organic compounds with boiling point > 65 ° C | P – Particles
Filter type: Combination filter
Material: Aluminium
Product series: Plug-in filter
Version: Combination filter
Product information filter housing 5570/70
The reusable filter mount 5570/70 is designed to hold the BartelsRieger multi-range and combination plug-in filters. It allows the use of BR plug-in filters with respirators (with standard standard thread connection EN 148-1).
Plastic filter housing, black, two-part, consisting of holder (upper part) and cover (lower part): Socket, approx. 105 mm outer diameter, 48 mm high, with standard thread (DIN EN 148-1) for connection to a mask, with gasket ring behind the trapezoid internal thread. Covers each approx. 99 mm outer diameter, various heights Lid 35 = 44 mm high, lid 70 = 62 mm high, each with trapezoidal male thread and pre-filter chamber with hinged cover
Login
| File | Category | Size | Filetype | Prio |
|---|---|---|---|---|
| Brochure BariMask HF | Product informations | 1.57 MB | ||
| 21_EU-type-examination_BariMaskHF | EU type-examination certificates | 797.13 KB | ||
| 21_EU-Declaration-of-conformity_Half-face-mask_BariMaskHF | EU declarations of conformity | 460.77 KB | ||
| 209252-Datasheet-Half face mask_BariMask HF | Datasheets | 480.20 KB | ||
| 203246-Datasheet-Starter pack half face mask BariMask HF + insert filter 39 ASt + filter hosuing 557070 | Datasheets | 541.03 KB | ||
| 09_EU-type-examination_Filter_39-40-45 | EU type-examination certificates | 1.52 MB | ||
| 09_EU-Declaration-of-conformity_Combination-filter_39-40 | EU declarations of conformity | 515.07 KB |
Accessory
