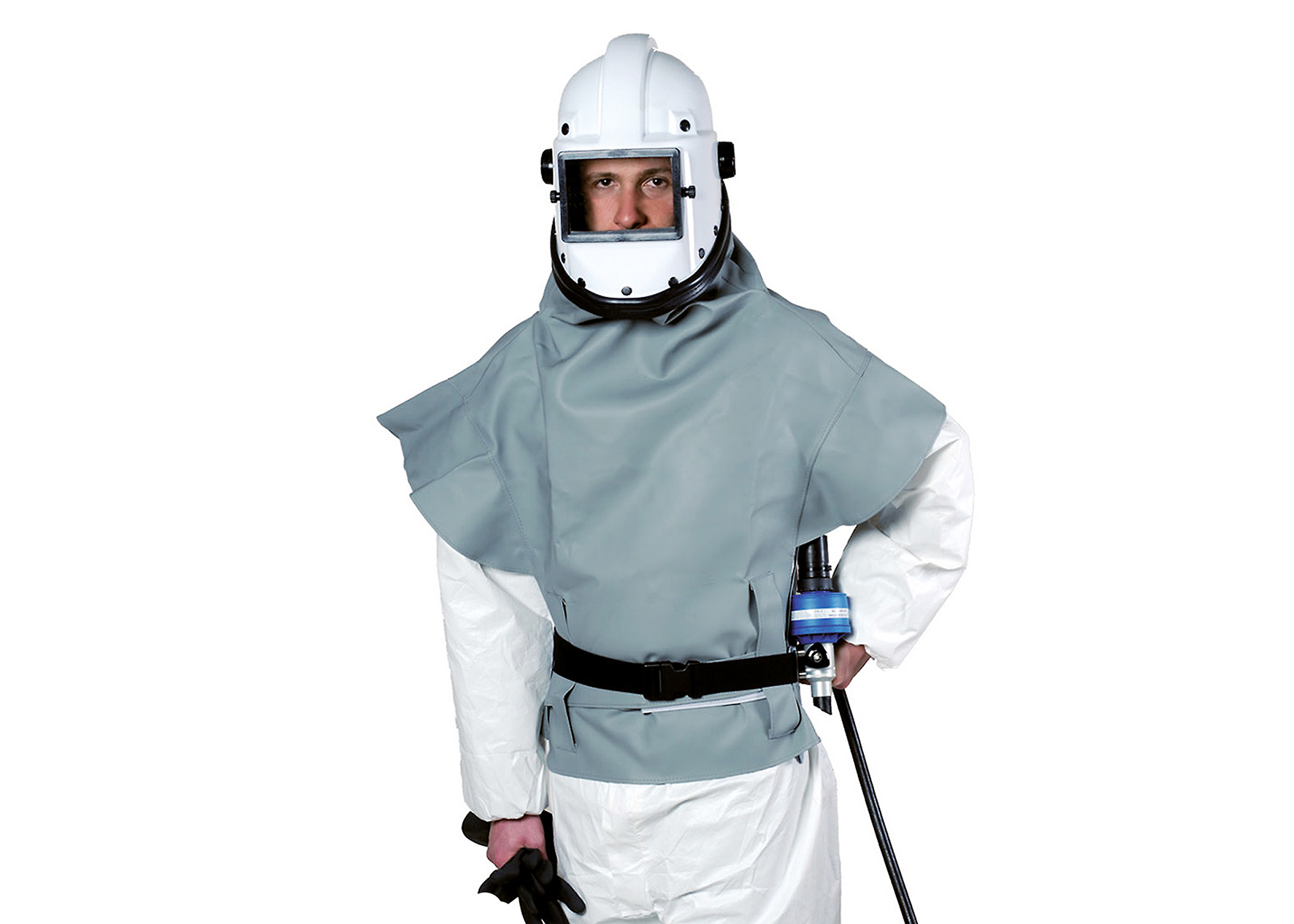

Sandblaster protection respirator ACS 952 with frontal protection waistcoat

The Sandblasting protection helmet ACS 952 is an isolating, constant flow, compressed air line respirator provided equipped with frontal protection waistcoat that grants a perfect protection for the breathing pathways and the parts of the body more likely to be exposed to the mechanical action of the abrasive blast. It is therefore the ideal personal protection device for sand blasting operations.

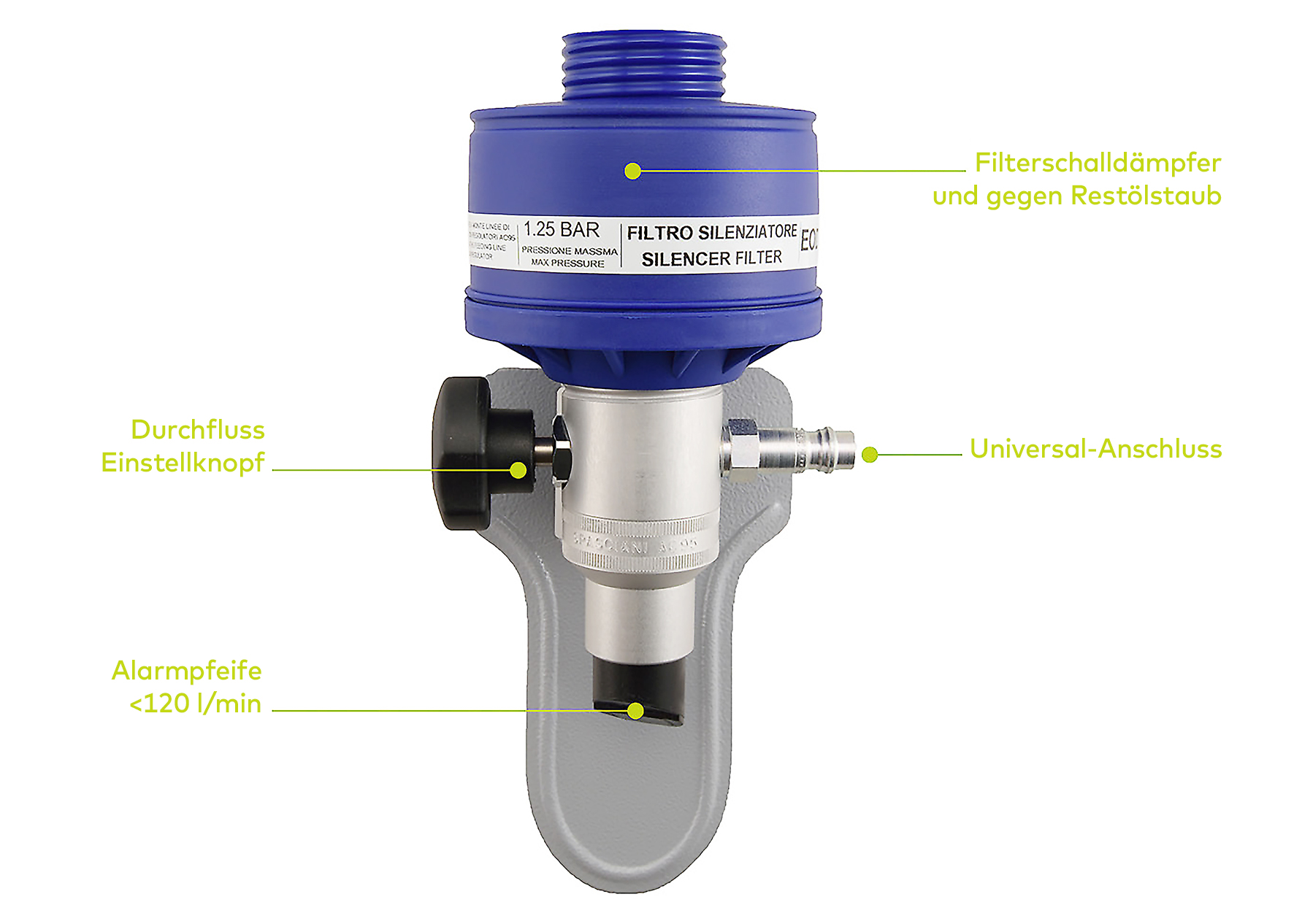

The presence of the filter silencer EOD55 that reduces the noise to a minimum, the possibility to adjust the flow coming out from the AC 95 regulator and two overflow valves that release the excess air to the ambient, make the use of the ACS 952 very comfortable and effective.

The ACS 952 helmet in shock proof material is provided with head harness adjustable from size 55 to 61. In the helmet a special duct leads the air to skim over the visor, thus avoiding steaming up. The helmet is provided with two exhalation valves protected by special caps. The helmet is provided with chin strap, adjustable by means of a sliding buckle, which keeps the helmet in position in any work situation, of a double visor (external part in glass and internal part in polycarbonate) which avoids grinding of the visor during sandblasting operation. A waistcoat made of strong fabric, coated with plastic and sewn onto the rubber profile, protects the wearer down to the waist.

The helmet is fed by the corrugated hose TUR 801 which draws the air in the breathing zone and that is positioned between the mask and the filter silencer, this last is connected to the flow regulator.

ACS 952 respirator shall be fed by a compressed air line source delivering air of breathable quality (according to EN 12021) with a pressure between 5-6 bar and with a minimum flow for each operator of 250 l/min. The flow regulator is connected to the air line by a compressed air feeding hose available in different lengths and provided with quick couplings for the connection to the air line outlet and to the flow regulator inlet.

Quick couplings are available in two versions: Eurocoupling (standard), compatible with the most widely used coupling for air line and Spasciani (on demand). Hoses shall be chosen and ordered separately making sure to have ordered the same coupling on the AC 952 and on the hoses. The respirator is supplied with graduated flow meter for checking the flow.

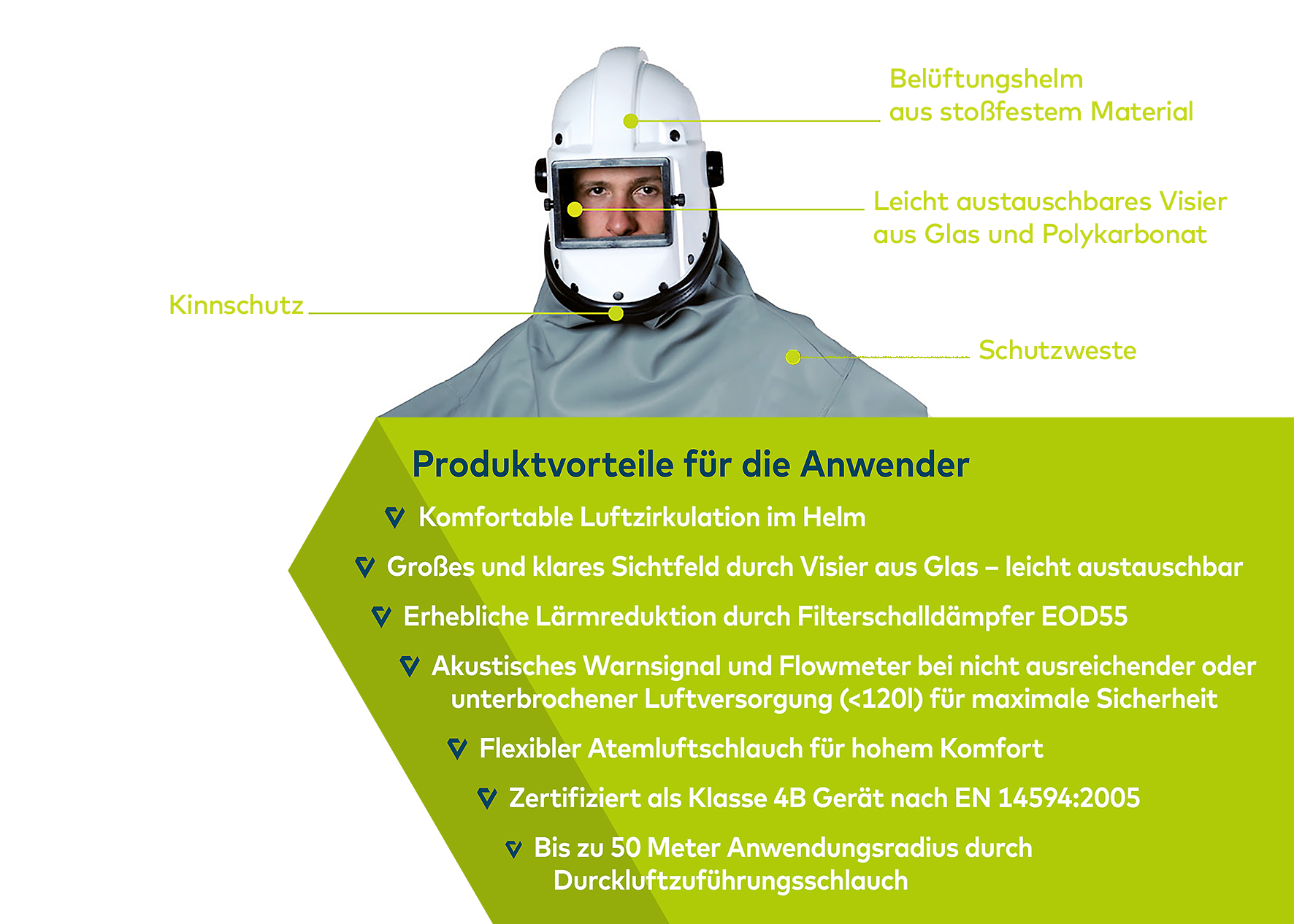

Product benefits for users

• Comfortable air circulation in the helmet
• Large and clear field of vision thanks to glass visor - easy to replace
• Significant noise reduction thanks to EOD55 filter silencer
• Acoustic warning signal and flowmeter in the event of insufficient or interrupted air supply (<120 litres) for maximum safety
• Flexible breathing air hose for high comfort
• Certified as a class 4B device in accordance with EN 14594:2005
• Up to 50 metre application radius thanks to compressed air supply hose
